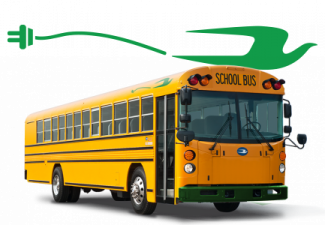

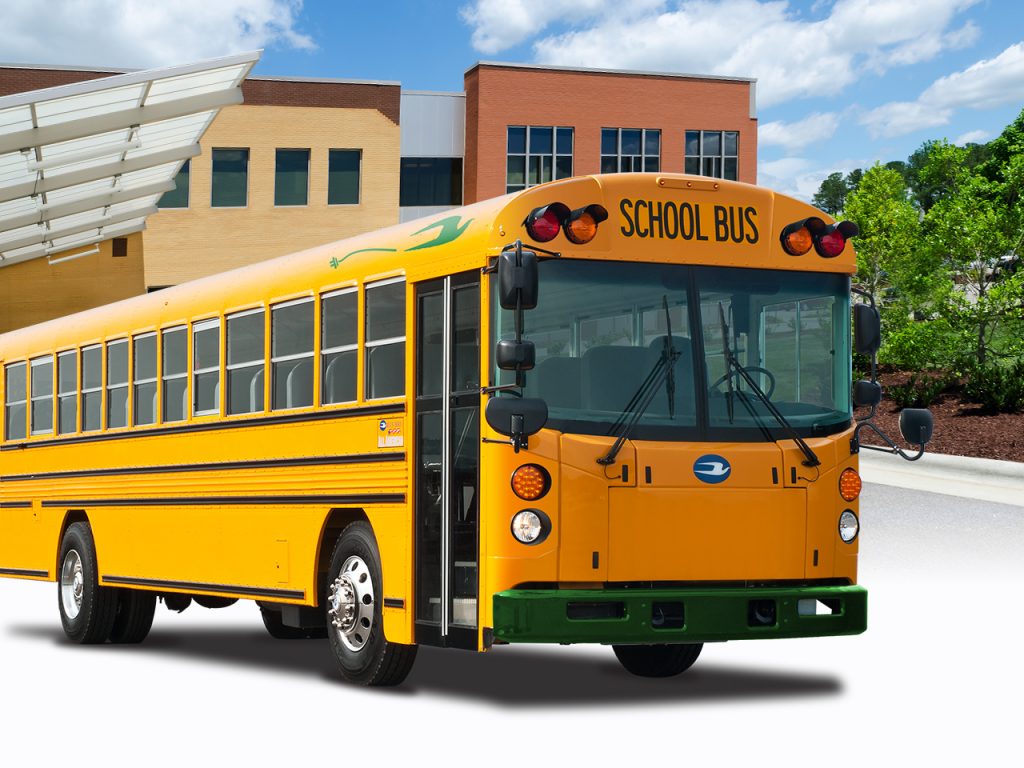

All-New Electric School Buses

Specifications
Capacity
Multiple floor plans available with passenger seating up to 81
Exterior Width
96”
Interior Width
90 3/4”
Isle Width
Varies by floor plan
Skirt Length
25 3/4”
Interior Headroom
77”
Overall Height
124”
Wheelbase
245” / 259” / 273”
Batteries
155 kWh Li-ION NMC/ G cell
Entrance Door
32” wide x 81” high / double “full view” outward opening
Propulsion System
Cummins PowerDrive 7000
Motor
TM4® SUMO™

  • Chassis

    • 100,000 psi steel frame rails 10 1/8″ high x 3″ flanges x 1/4″ thick
    • Cummins PowerDrive 7000 propulsion system, Utilizing an electric motor, 315 peak horsepower, 2,400ft-lbs peak torque
    • 155 kWh Lithium ion NMC/G cell between frame rails
    • 620 Nominal Voltage
    • Up to 120 miles per charge dependent on drive cycle, driver behavior, accessories and HVAC usage
    • 11R22.5 (G) tires
    • Large, easy to read gauges
    • 13,200 lb. front axle with parabolic
    spring suspension
    • 23,000 lb. rear axle with leaf spring suspension
    • Rubber coolant hoses
    • Anti-lock brakes
    • Air brake system
    • 12” steel front bumper
    • Tilting/telescoping steering column
    • Group-31 12v battery
    • “Huck Spin” fasteners on all permanent frame fixtures

  • Durability

    • All parts are pre-primed or thoroughly rust-proofed after fabrication and before assembly
    • Entire underbody (body skirt and floor) is undercoated before mounting on chassis
    • Exterior surfaces are painted with heat-cured polyurethane
    • Interior surfaces are painted with high-quality, hotsprayed, baked-on enamel
    • 1/8” Smooth black rubber flooring, 3/16” ribbed rubber aisle
    • Rubber cooling hoses
    • Rubber molded wheelhouse
    • “Huck Spin” frame fasteners

  • Strength

    • 14-gauge steel, hat shaped posts and roof bows
    • 16-gauge, channeled interior steel window headers
    • Riveted and welded construction
    • Four full-length, 16-gauge exterior side rub rails
    • 20-gauge fluted exterior side panels
    • 22-gauge interior galvalume side panels
    • 14-gauge steel floor panels
    • 100,000 psi steel chassis frame, 1/4” thick with permanent fixtures and attached with “Huck Spin” fasteners

  • Safety

    • 4-wheel anti-lock brakes
    • Single halogen headlights
    • Driver's three-point seat belt with adjustable 7 1/2” pillar loop
    • Outward-opening entrance door
    • Flat and convex rearview mirrors
    • Crossview mirrors
    • Electric horn with high and low note
    • Blue Bird's unitized construction of the passenger compartment
    • 15” steel front bumper, 12” steel rear bumper
    • Suspended brake and accelerator pedals with optimized spacing
    • Certified to Colorado Rack and Load and Kentucky Pole testing
    • Sound generator enabled with speeds less than 20mph

  • Serviceability

    • Wiper motors mounted behind hinged panel for easy access
    • Easy access to front headlights
    • Body wiring terminal is easily accessible through exterior electrical compartment
    • Wiring is color coded and continuously numbered for easy identification
    • Fused circuit protection
    • Grease fittings on emergency door hinges
    • Easy-opening, outward opening entrance door; features long-lasting, oil-impregnated, bronze pivotal bearings
    • All Lights equipped with plug in connectors

  • Comfort & Convenience

    • 77” headroom at aisle, front to rear
    • 12” Split-sash, tempered windows
    • Tinted windshield
    • 90,000 btu front heater and defroster
    • Full “panoramic” cockpit view
    • Full body insulation
    • Acoustic headlining (Driver's section)
    • Efficiency meter

  • Driver Ergonamics

    • Power steering with tilting/telescoping column
    • Large, easy to read gauges
    • Backlit, easy to reach switch panel with rocker switches
    • Electric, intermittent, single switch windshield wipers
    • 3-point seat belt with 7 1/2” vertical adjustment
    • Fully adjustable driver's seat
    • Wraparound dash

  • Optional Features

    • Front and rear air ride suspension available on 259” and 273” wheelbase only
    • Roof or skirt mounted HV self contained A/C
    • Wheelchair lift is available as right side mid mount only
    • Driver side tool compartment
    • Driver side mid-mount luggage compartment
    • Stepwell area heater, front of bus heaters and rear bus heaters

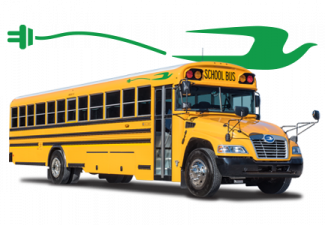

  • Specifications
    Capacity
    Multiple floor plans available with passenger seating up to 72
    Exterior Width
    96”
    Interior Width
    90 3/4”
    Isle Width
    Varies by floor plan
    Skirt Length
    25 3/4”
    Interior Headroom
    77”
    Overall Height
    123”
    Wheelbase
    252” / 273”
    Batteries
    155 kWh Li-ION NMC/ G cell
    Entrance Door
    27” wide x 78” high / double “full view” outward opening
    Propulsion System
    Cummins PowerDrive 7000
    Motor
    TM4® SUMO™
  • Specifications
    Tire Size
    11R22.5 (G)
    Brakes
    Air brakes 5" front and 7" rear
    Suspension
    Front - 10,000 lb. parabolic springs
    Rear - 23,000 lb. leaf springs
    Steering
    Tilting/telescoping steering
    Front Axle
    10,000 lb.
    Rear Axle
    23,000 lb.
    Wheel Cut
    50°
    GVWR
    Up to 33,000 lb.
    Miles per Charge
    Up to 120 miles
    Recharge Time
    Standard CCS1 connector with AC and DC
    Fast Charging capabilities:
    - Level 2 charging in approx. 8hrs
    - Level 3 (DCFC) charging in approx. 3hrs

  • Chassis

    • 100,000 psi steel frame rails 10 1/8″ high x 3″ flanges x 1/4″ thick
    • Cummins PowerDrive 7000 propulsion system, Utilizing an electric motor, 315 peak horsepower, 2,400ft-lbs peak torque
    • 155 kWh Lithium ion NMC/G cell between frame rails
    • 620 Nominal Voltage
    • Up to 120 miles per charge dependent on drive cycle, driver behavior, accessories and HVAC usage
    • 11R22.5 (G) tires
    • Large, easy to read gauges
    • 10,000 lb. front axle with 10,000 lb. parabolic spring suspension
    • 23,000 lb. rear axle with leaf spring suspension
    • Rubber coolant hoses
    • Anti-lock brakes
    • 15” steel front bumper
    • Tilting/telescoping steering column
    • Group-31 12v battery
    • “Huck Spin” fasteners on all permanent frame fixtures

  • Durability

    • All parts are pre-primed or thoroughly rust-proofed after fabrication and before assembly
    • Entire underbody (body skirt and floor) is undercoated before mounting on chassis
    • Exterior surfaces are painted with heat-cured polyurethane
    • Interior surfaces are painted with high-quality, hotsprayed, baked-on enamel
    • 1/8” Smooth black rubber flooring, 3/16” ribbed rubber aisle
    • Rubber cooling hoses
    • Rubber molded wheelhouse
    • “Huck Spin” frame fasteners

  • Strength

    • 14-gauge steel, hat shaped posts and roof bows
    • Rigid 16-gauge steel roof longitudinal internal structural members
    • 16-gauge, channeled interior steel window headers
    • Riveted and welded construction
    • Four full-length, 16-gauge exterior side rub rails
    • 20-gauge fluted exterior side panels
    • 22-gauge interior galvalume side panels
    • 14-gauge steel floor panels
    • 100,000 psi steel chassis frame, 1/4” thick with permanent fixtures and attached with “Huck Spin” fasteners

  • Safety

    • 4-wheel anti-lock brakes
    • Single halogen headlights
    • Driver's three-point seat belt with adjustable 7 1/2” pillar loop
    • Outward-opening entrance door with 1,350 square-inch tempered safety glass
    • Best driver's line of sight in the school bus industry for a Type C product
    • Flat and convex rearview mirrors
    • Crossview mirrors
    • Electric horn with high and low note • Blue Bird's unitized construction of the passenger compartment
    • 15” steel front bumper, 12” steel rear bumper
    • 8.25 x 22.5 Disc, hub-piloted steel wheels
    • Certified to Colorado Rack and Load and Kentucky Pole testing
    • Sound generator enabled with speeds less than 20mph

  • Serviceability

    • Chassis multiplex wiring
    • Large work space under hood
    • Easy hood assist
    • Body wiring terminal is easily accessible through exterior electrical compartment
    • Wiring is color coded and continuously numbered for easy identification
    • Fused circuit protection
    • Grease fittings on emergency door hinges
    • Easy-opening, outward opening entrance door; features long-lasting, oil-impregnated, bronze pivotal bearings
    • Body wiring is encased in “easy to access” ABS molding above passenger windows

  • Comfort & Convenience

    • 77” headroom at aisle, front to rear
    • 12” Split-sash, tempered windows
    • Tinted windshield
    • 90,000 btu front heater and defroster
    • Full “panoramic” cockpit view
    • Full body insulation
    • Acoustic headlining (Driver's section)
    • Efficiency meter

  • Driver Ergonamics

    • “Best-in-class” driver visibility
    • Power steering with tilting/telescoping column
    • Large, easy to read gauges
    • Backlit, easy to reach switch panel with rocker switches
    • Electric, intermittent, single switch windshield wipers
    • 3-point seat belt with 7 1/2” vertical adjustment
    • Fully adjustable driver's seat
    • Wraparound dash

  • Optional Features

    • Front and rear air ride suspension available on 273” wheelbase only
    • Roof or skirt mounted HV self contained A/C
    • Wheelchair lift is available as right side rear mount only
    • Driver side tool compartment
    • Driver side mid-mount luggage compartment
    • Stepwell area heater, front of bus heaters and rear bus heaters

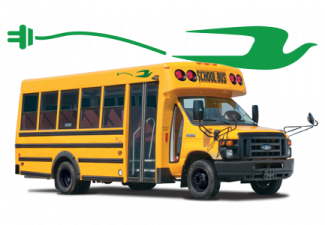

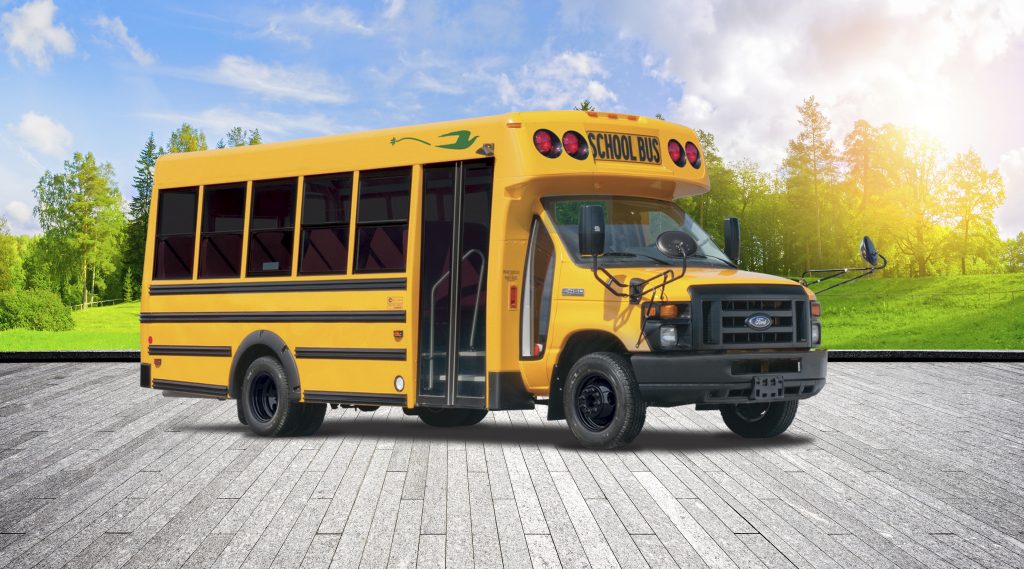

Specifications Ford E-450
Max Passenger Capacity
30 / 18
Number of Rows
5 / 5
Exterior Length Overall
283" / 283"
Exterior Width Overall
96" / 96"
Exterior Height Overall
113" / 118"
Interior Floor Length
177.25" / 177.25"
Interior Width at Hip
93" / 93"
Interior Height at Center Line
76" / 76"
Entrance Door
32" x 77" / 32" x 82"
Entrance Door
27” wide x 78” high / double “full view” outward opening
Side Windows
35" x 30" / 35" x 30"
Motor
Electric Borg-Warner Remy

  • Reinforced Structure

    • Aluminum side body panels for longevity and low repair costs
    • HD package available for harsh driving conditions
    • Extra structural reinforcement to meet stringent requirements
    • One Piece galvanized steel roof bow

  • Enhanced Safety

    • Heavy-gauge steel side impact barriers
    • Easy access to control panel
    • Maximum visibility with the more-view window and the fully glassed entrance door

  • Superior Insulation and Quietness

    • 1.5″ fiberglass throughout
    • Insulated roof bows
    • Prevents condensation and corrosion
    • Reduction of noise transfer into passenger compartment

  • Increased Comfort

    • Wider seating for superior comfort
    • Wide body design creating large aisle
    • Better compartmentalization
    • Better knee clearance and modularity

​​​​​​​We Can Help You Apply for Funding

FREE Grant Process Assistance

Let's face it, grant funds typically go hand-in-hand with green technologies and California leads the way on both fronts, but programs can be complicated and extremely time consuming. A-Z Bus Sales has your back! Let our team of experts get you up to speed on the available programs and help you tackle the processing of your applications. FREE of charge!

Find out More

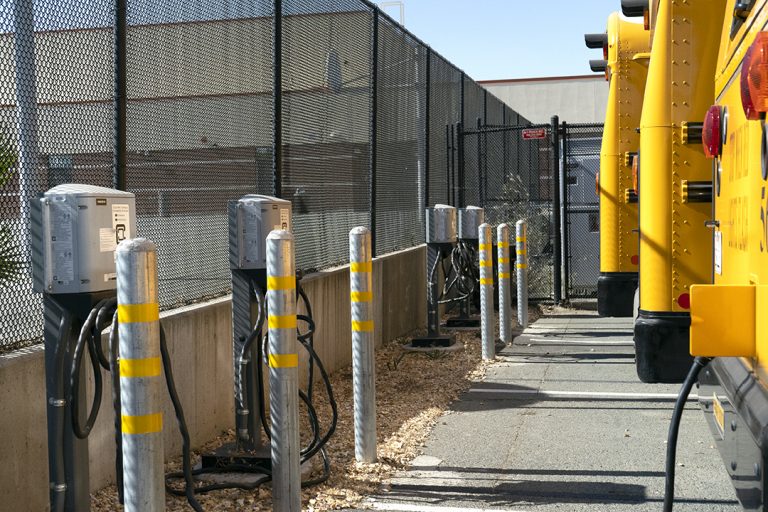

EV Infrastructure
